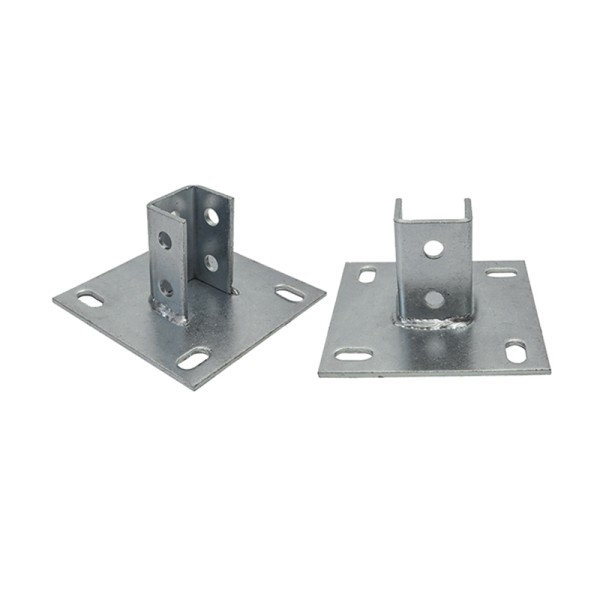

PV Panel Mount Base Heavy Duty Support Base Q235 Steel Material

  • 1
  • 2

Delivery Time : 15-20 work days

Compatible Channel : 41×21mm Strut Channel

Snow Load : 1.2–2.0kN/㎡

Price : $0.5-$1.5/m

Surface Treatment : Hot Dip Galvanized (HDG)

Place of Origin : Hebei,China

Material : Q235/Steel

Certification : ISO9001

Product name : PV Mount Base

Hole Spacing : 40mm / 50mm / Standard 47.6mm

Packing : Standard export packing

Packaging Details : Pack According To The Product Size/Customized

Hole Type : Round Hole φ11 / φ13.5; Oblong Slot Hole; Custom Hole Pattern

Sample : Free

Working Load : 150kg–800kg (According to thickness & structure)

Tolerance : ±3%

Brand Name : Jiucan Metal

MOQ : 500 pcs

Payment Terms : T/T,T/T

Supply Ability : 50 to 80+ tons/day

Thickness : 4-6mm/ Customized

Size : Standard size

Contact Now

PV Panel Mount Base Heavy Duty Support Base

Introduction

This heavy-duty PV panel mount base is engineered for large-scale solar power stations and high-load installation scenarios. Constructed with thickened high-strength steel, it delivers outstanding load-bearing capacity to support large photovoltaic panels and mounting structures. Ideal for ground-mounted solar farms, industrial rooftops and open-field photovoltaic projects, it effectively withstands strong winds, heavy snow accumulation and extreme weather impacts. The reinforced structural design prevents bending, twisting and structural fatigue, ensuring long-term stability of the entire mounting system. Hot-dip galvanized surface treatment provides full anti-corrosion protection, making it suitable for coastal, industrial and high-humidity environments. Compatible with standard solar rails and mounting components, it supports modular assembly and large-scale project construction. Each unit is manufactured under strict quality control and load testing to meet international PV engineering specifications. It offers a dependable heavy-duty support solution for long-life solar energy systems.

Features

The heavy-duty PV mount base boasts ultra-high load-bearing capacity and excellent structural rigidity. Thickened steel material enhances resistance to bending and compression, ensuring stability under extreme weather conditions. The full hot-dip galvanized surface delivers superior anti-corrosion performance, resisting salt spray, moisture and chemical pollutants. Reinforced edges and optimized stress distribution improve overall durability and fatigue resistance. Standardized hole positions allow fast, tool-friendly installation, boosting on-site construction efficiency. Its universal design matches most solar rail systems, supporting flexible project layout and adjustment. The base effectively isolates the mounting structure from foundations, reducing vibration and structural damage. With reliable stability and low maintenance costs, it provides secure heavy-duty support for long-term operation of commercial and industrial solar power systems.

Specification

Item Specification Details
Product Name Solar Mounting Bracket Base / PV Mount Base / Solar Racking Foundation
Material Q235B Carbon Steel; AL6005-T5 Aluminum Alloy; Stainless Steel 304/316
Surface Treatment Hot Dip Galvanized (HDG); Pre-Galvanized; Anodized; Electro-Galvanized
Standard Size 100×100mm / 120×120mm / 150×150mm / 200×200mm (Customizable)
Thickness 3.0mm / 4.0mm / 5.0mm / 6.0mm (Customizable)
Compatible Channel 41×21mm / 41×41mm Strut Channel, Standard Solar Mounting Rails
Hole Type Round Hole φ11 / φ13.5; Oblong Slot Hole; Custom Hole Pattern
Hole Spacing 40mm / 50mm / 60mm / Standard 47.6mm
Working Load 150kg–800kg (According to thickness & structure)
Wind Pressure Resistance Up to 60m/s (Customizable for high wind area)
Snow Load 1.2–2.0kN/㎡
Temperature Range -40℃ ~ +120℃
Anti-Corrosion Grade HDG: 20–30 years outdoor; Aluminum: 25+ years; SS316: Marine Grade
Installation Type Bolt Fixed, Adjustable, Ground / Roof Mounted
Certification ISO9001, CE, SGS, TUV Test Report Available
Application Ground PV Station, Rooftop Solar, Solar Farm, Industrial PV System
MOQ 100pcs / Accept Small Trial Order
OEM & ODM Size, Thickness, Logo, Packaging All Customizable
Packing Carton + Pallet; Custom Packing Acceptable
Service Life 20–30 years



PV Panel Mount Base Heavy Duty Support Base Q235 Steel Material


FAQ

Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.

Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
